2014 New UPA USB Programmer V1.2 with Full Adaptors

  • $99.99

  • Ex Tax: $99.99
  • Package: 33.00*23.00*4.00cm
  • Weight: 0.60kg
  • Availability:In Stock
  • Product Code: SE91


Product Description

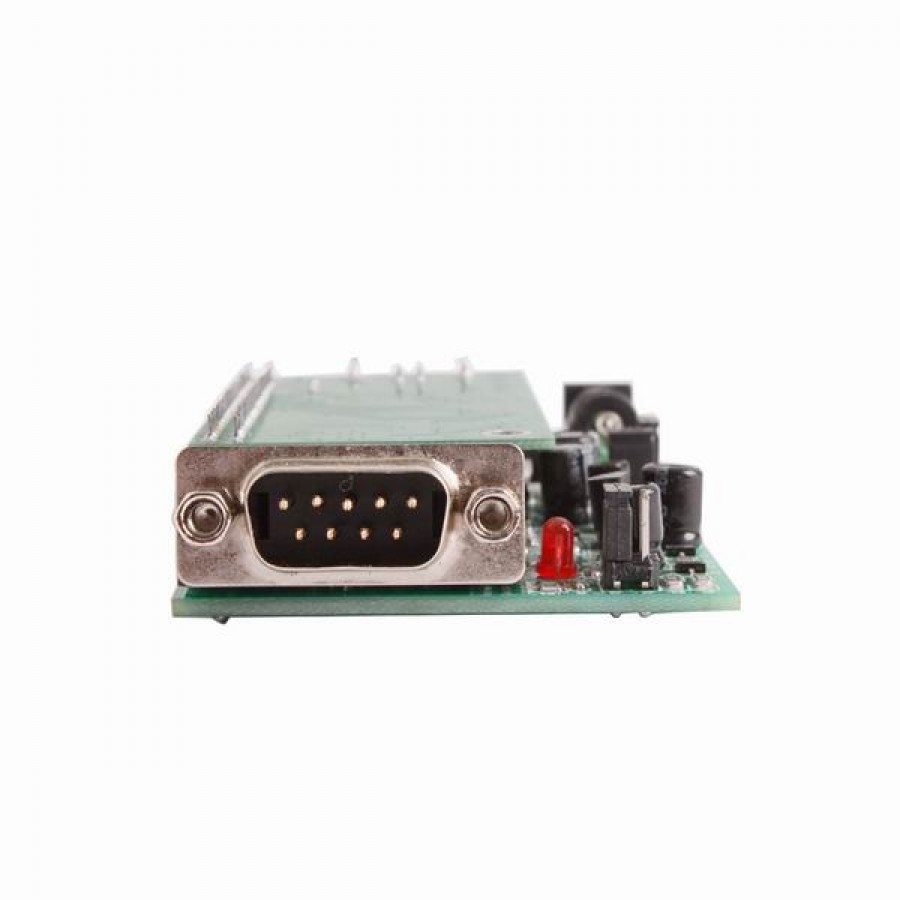

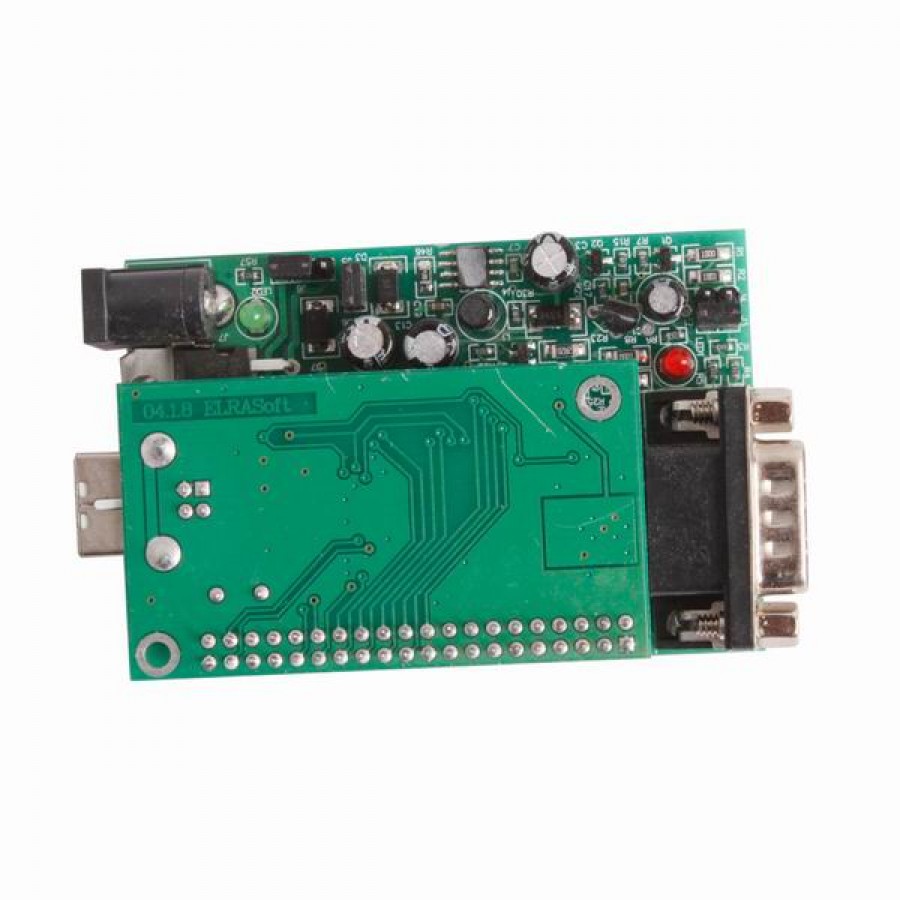

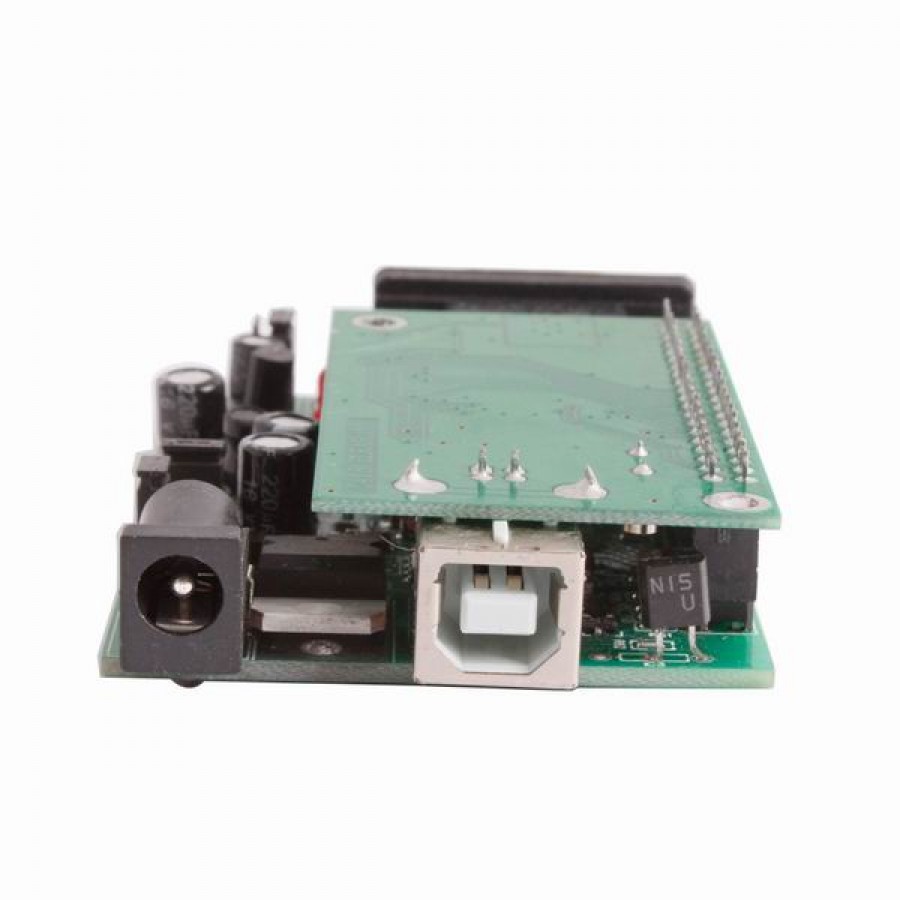

1.The main Device can be directly connected to the Elrasoft.com UUSP (UPA-USB Serial Programmer) or by an optional DB9 male / female 1:1 extension cable.
2.It's equipped with an 40pin ZIF Socket for all narrow and wide DIP / DIL devices as well as with a 16 pin SOIC ZIF (150mil, narrow) socket to cover most commonly used devices.

2014 New UPA USB Programmer V1.2 With Full Adapters


Supported Language:  English Only
Software Version:  Hardware Version: V2013    Software Version:  V1.2

Product Information:

Device configuration is done over special config keys which make the work convenient and safe compared to wiring up all manually.

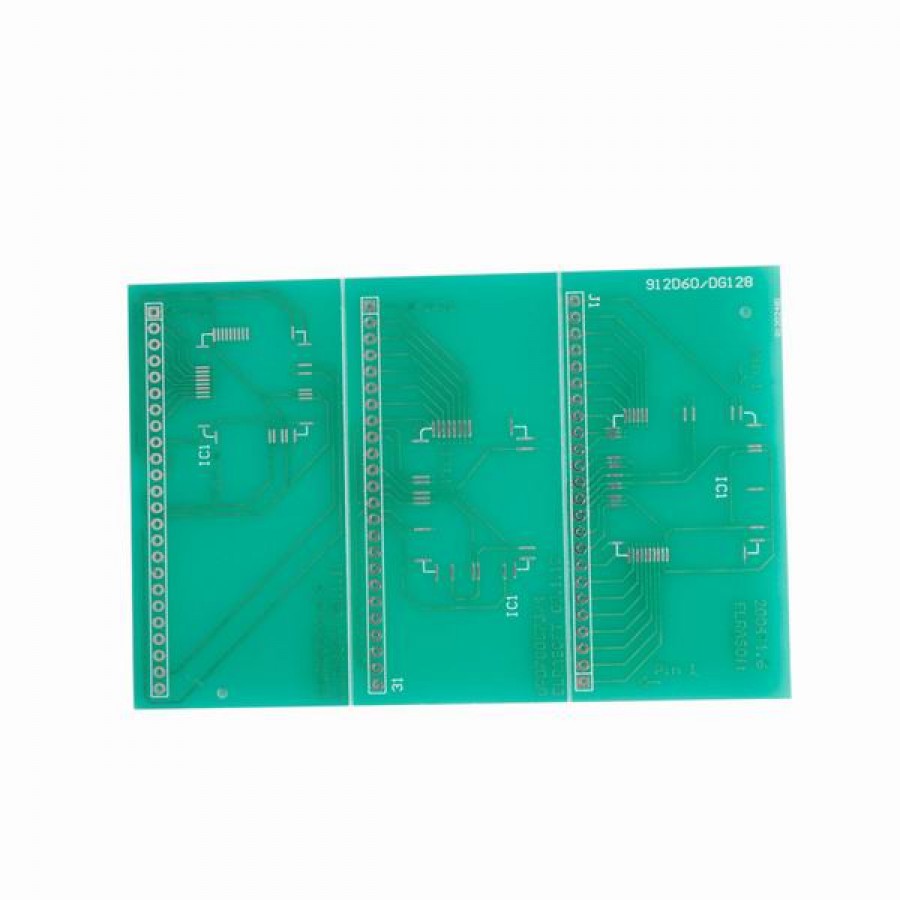

Additional packages can be covered by commonly available Adapters plugged into the 40 pin ZIF socket.

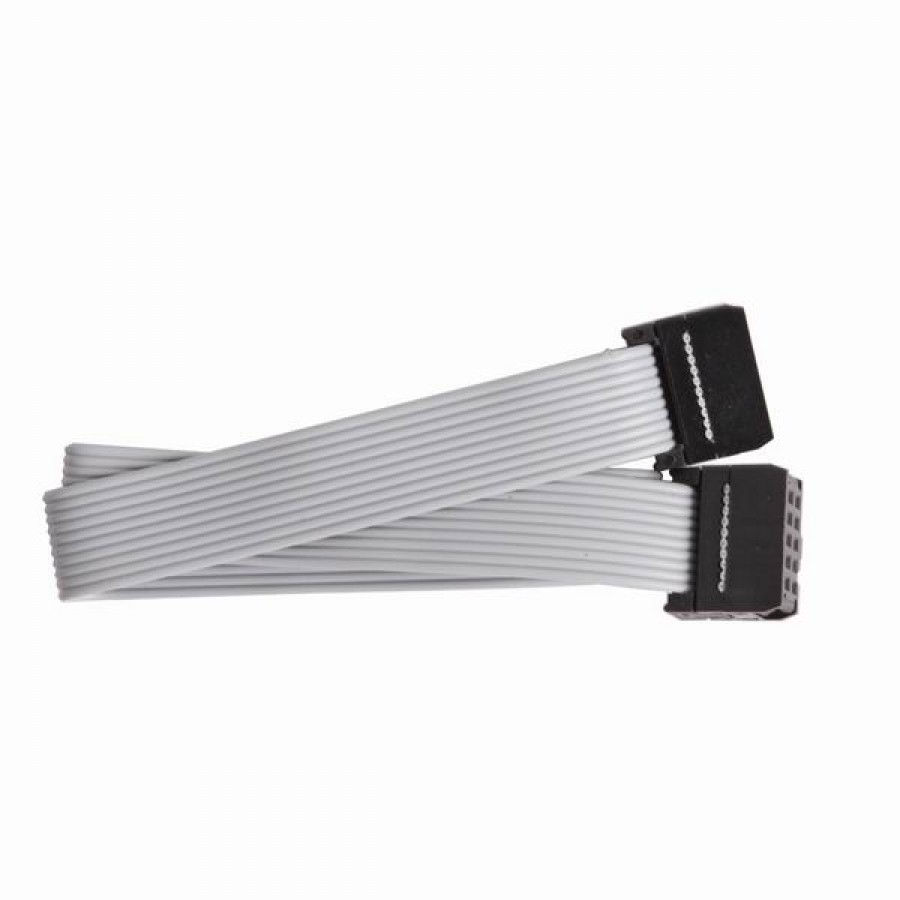

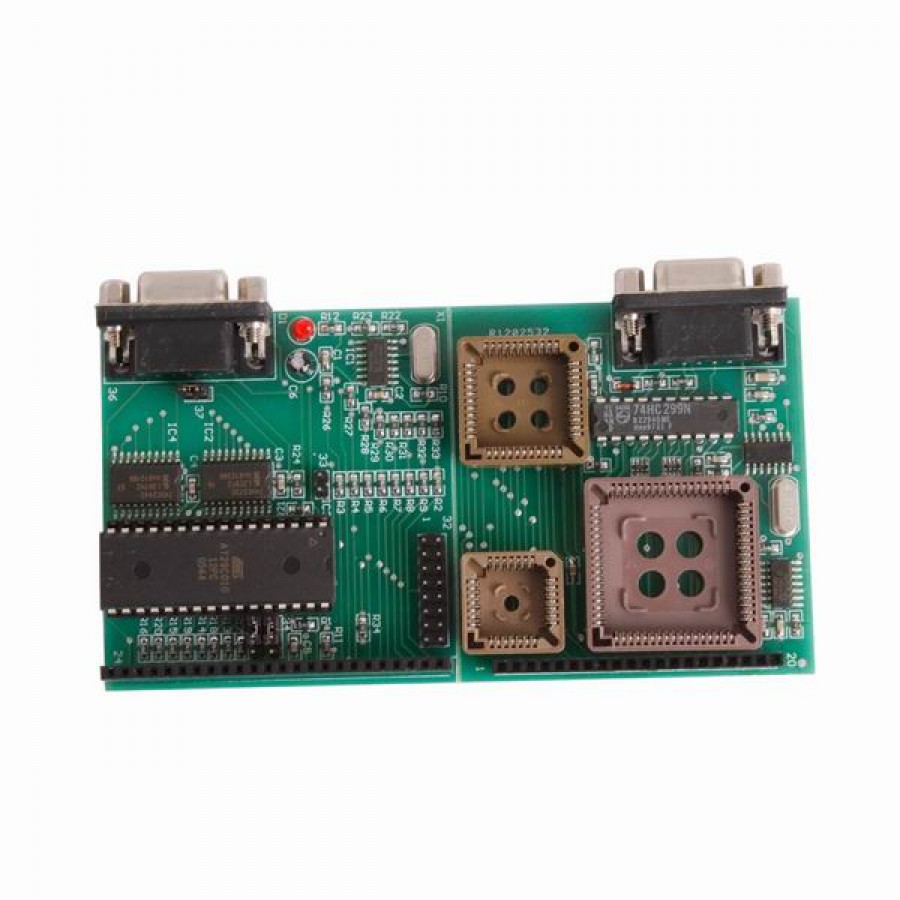

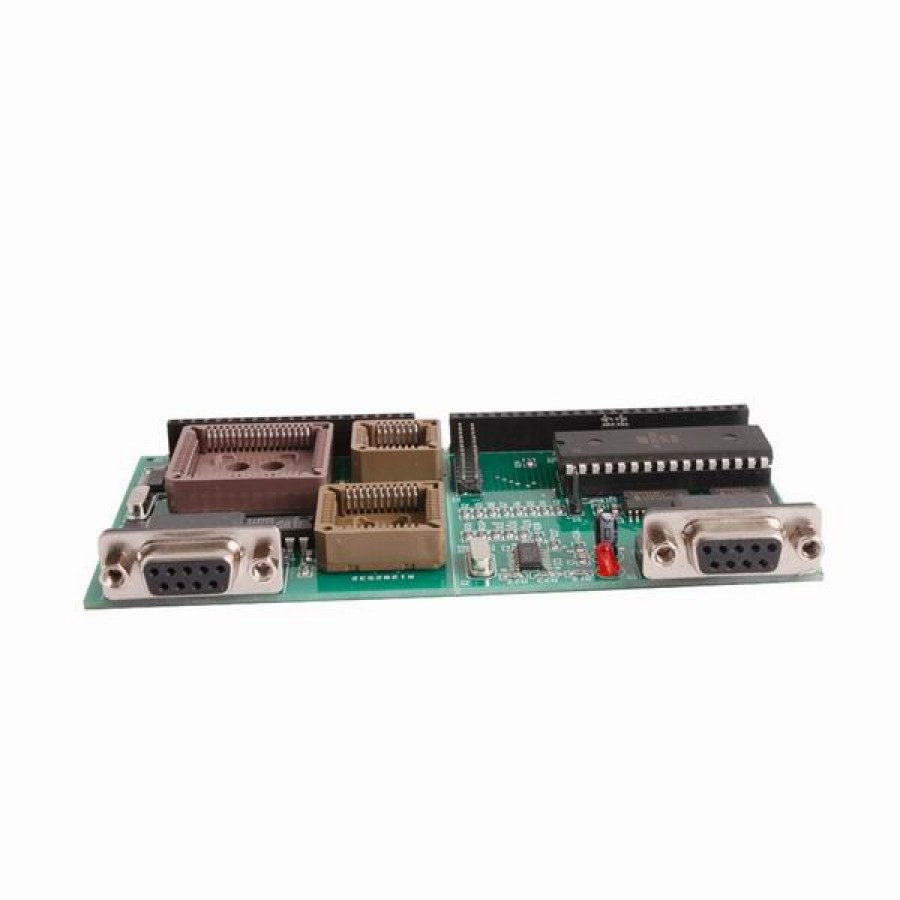

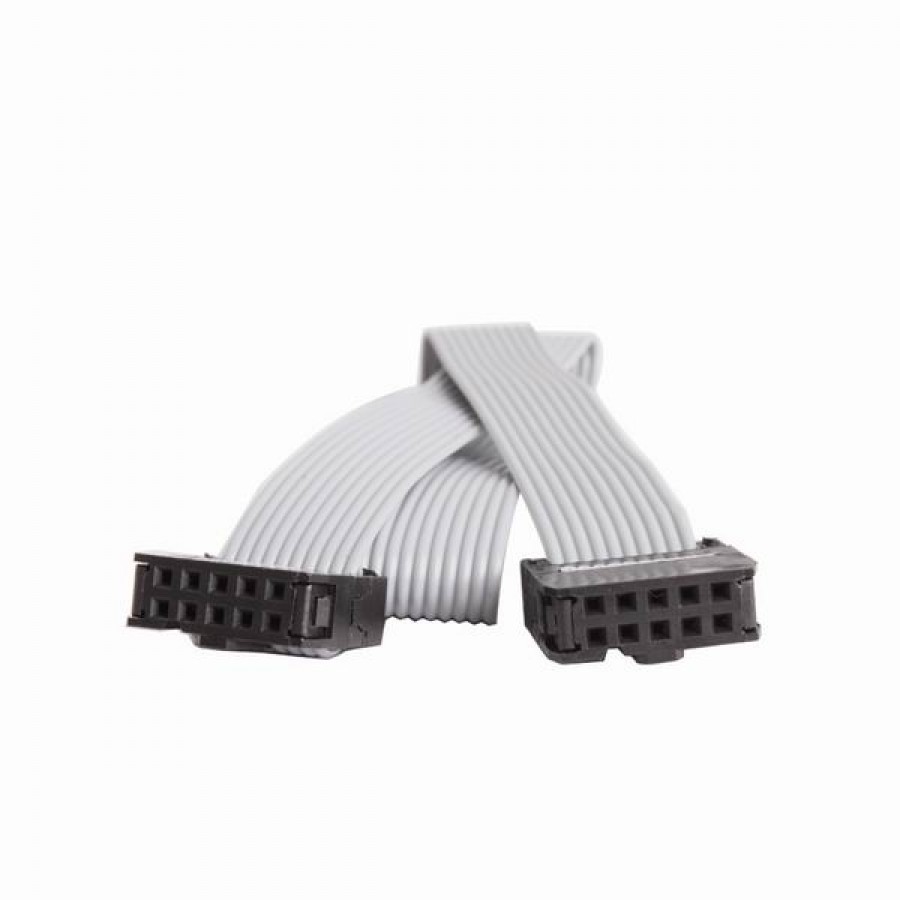

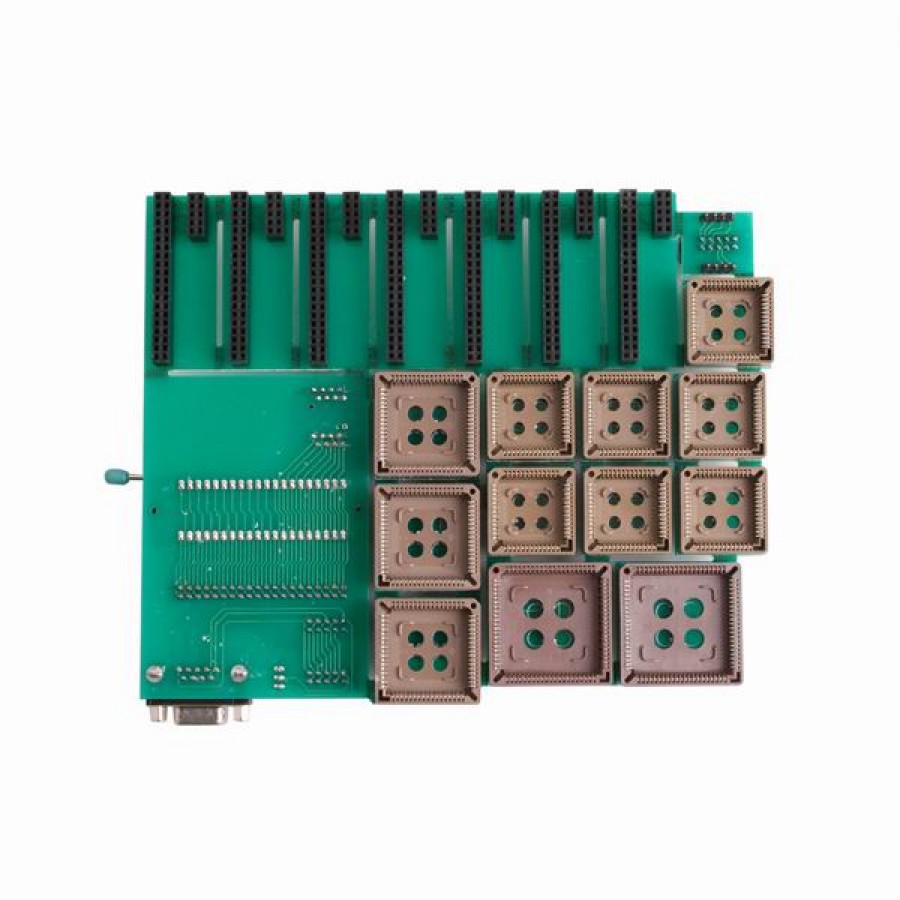

The main Device further includes a 10 pin ISP connector where the included ISP Adapters can be connected using a standard 1:1 flatribbon cable (included). The included PLCC ISP Adapters are to be put directly over the soldered chip of the target device making the work convenient and safe compared to soldering or using clips connecting up all manually.
(Power from the UUSP to the ISP target can be enabled or disabled by a jumper next to the 10 pin ISP connector)

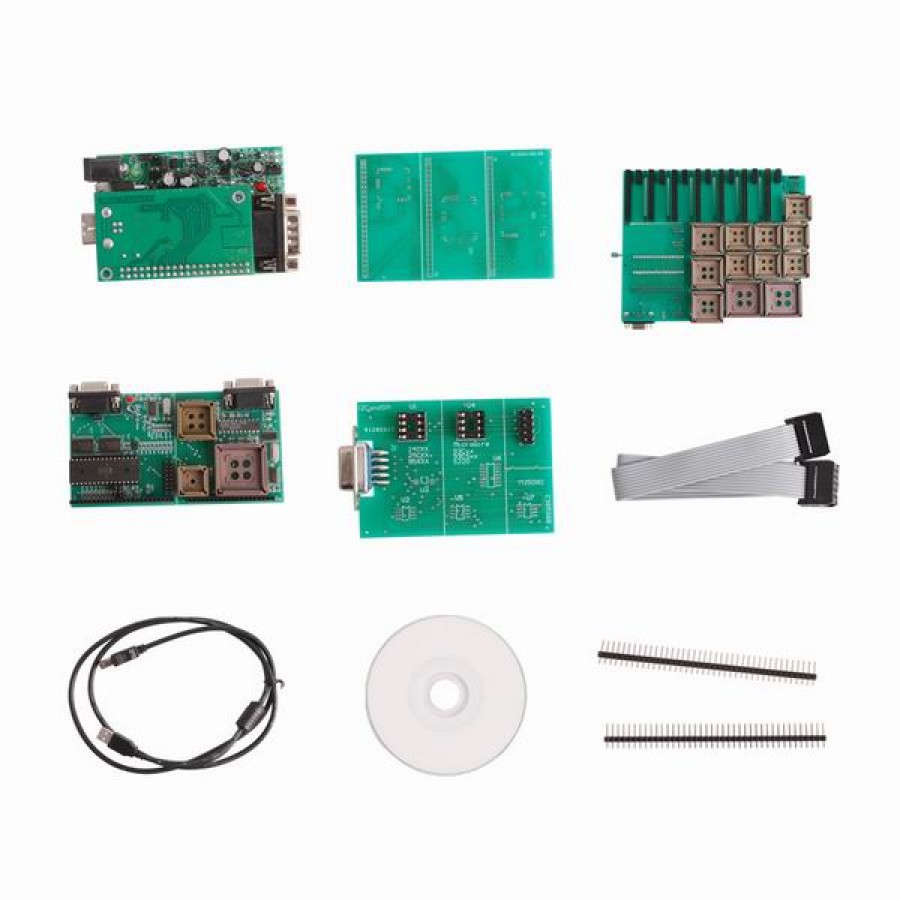

Package Contains:

1x UPA programmer

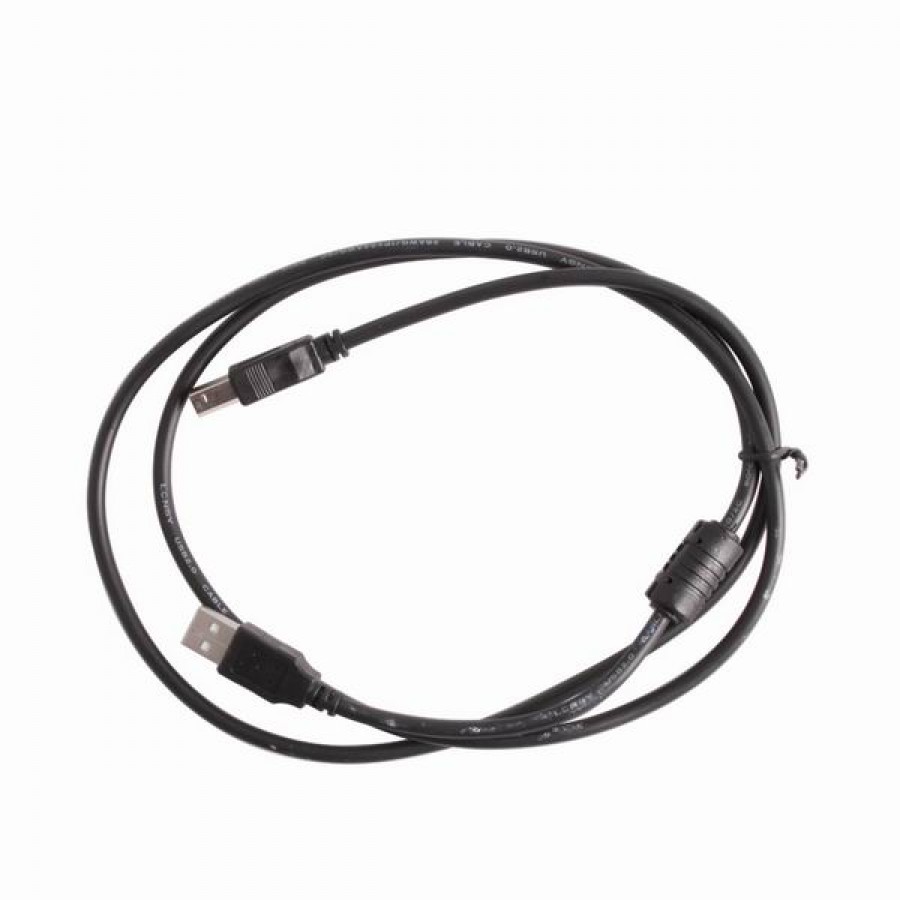

1x USB cable

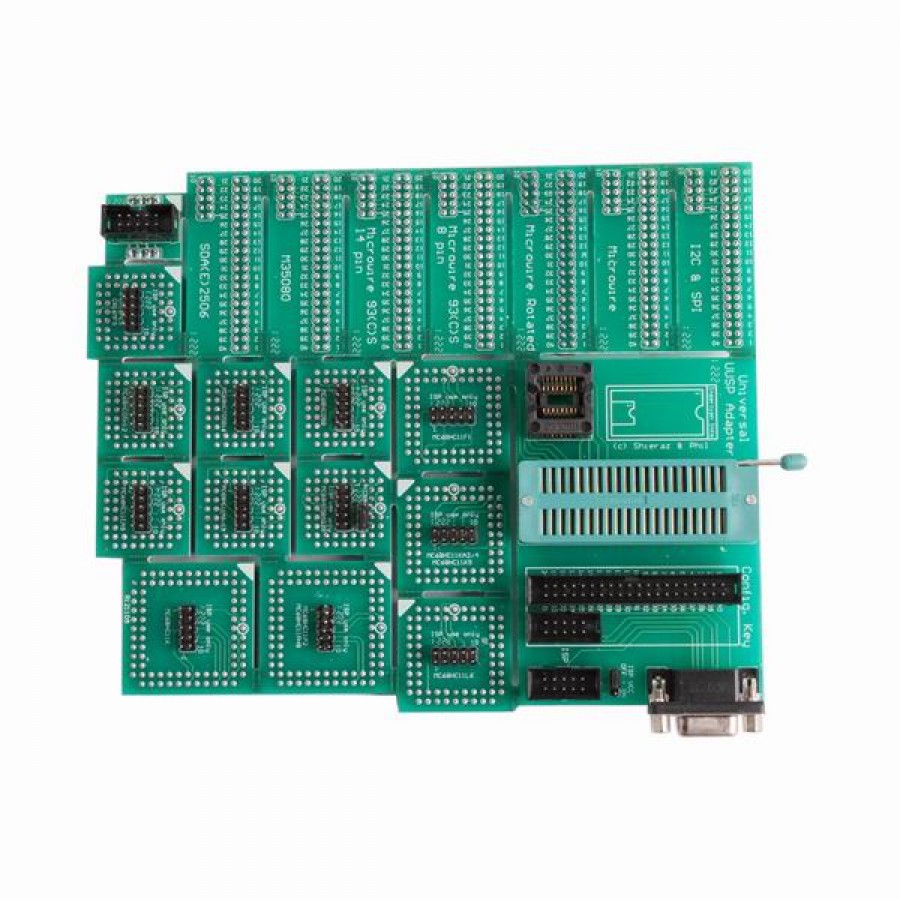

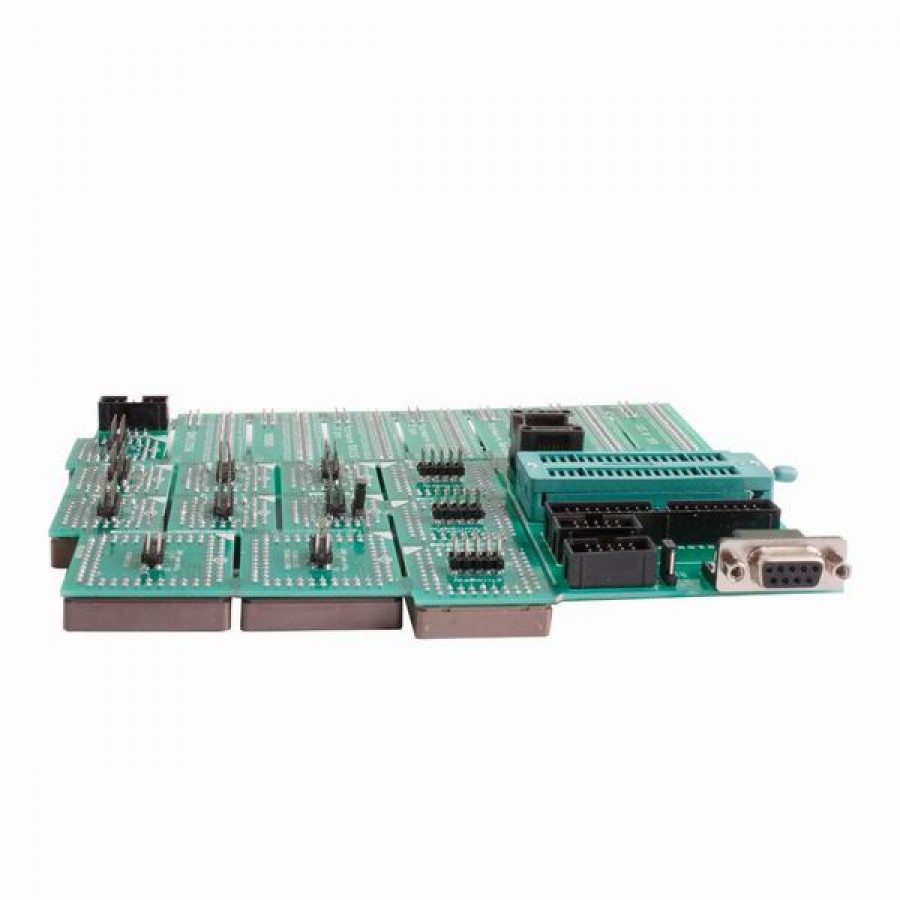

1 x Mainboard with 40pin DIL ZIF (600mil) socket and 14pin SOIC ZIF (150mil) socket

Config Keys: (For Device Configuration)

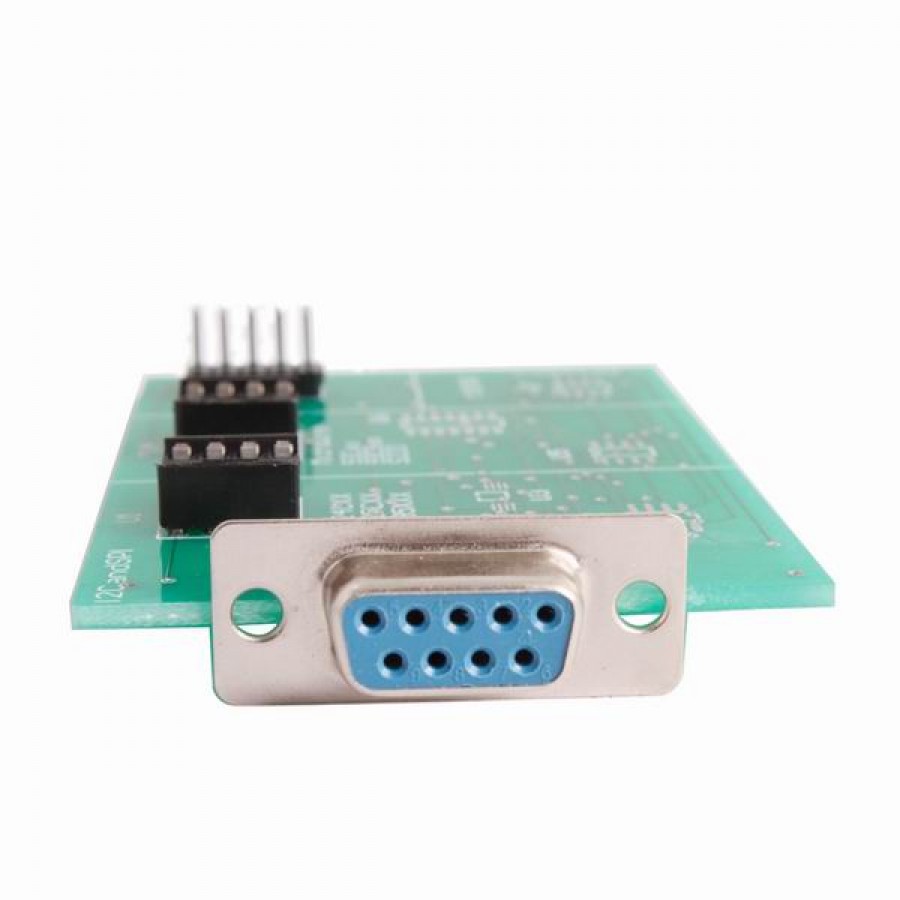

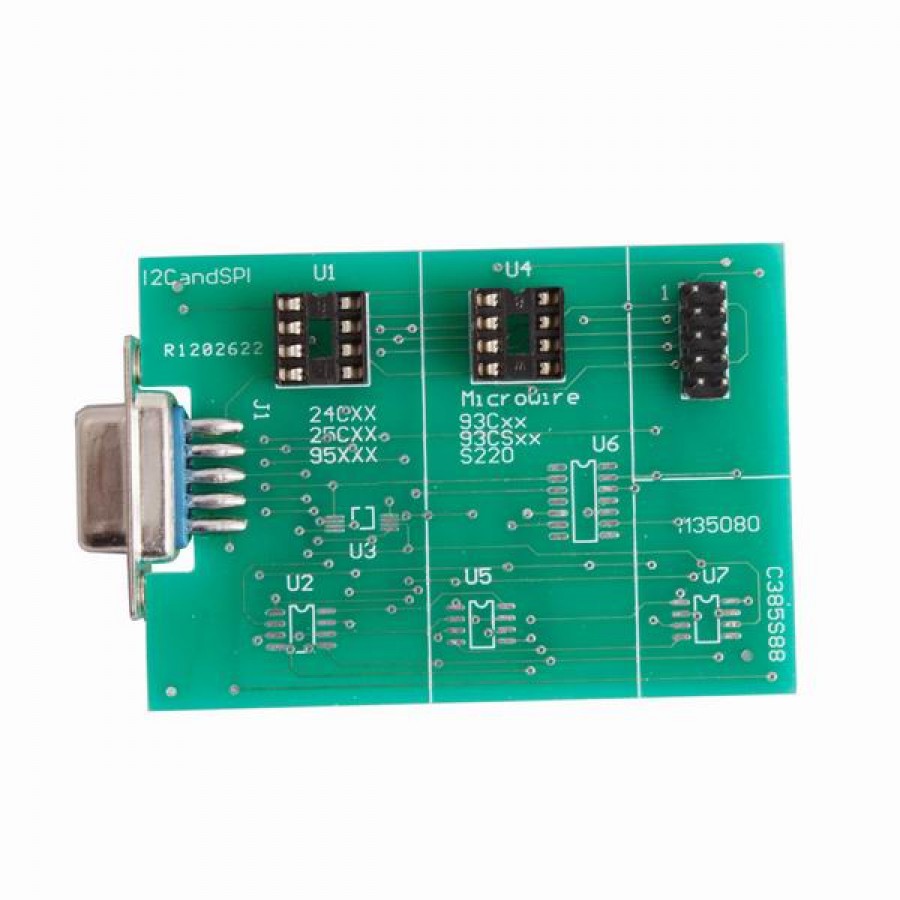

1 x I2C & SPI Config Key
1 x Microwire Config Key
1 x Microwire Rotated Config Key
1 x Microwire 93(C)S   8 pin Config Key
1 x Microwire 93(C)S 14 pin Config Key
1 x M35080 Config Key
1 x SDA(E)2506 Config Key
