Product Description
9S12 908 711 705 4 ln 1 Motorola Programmer
9S12 908 711 705 4 ln 1 Motorola Programmer
Top 2 Reasons to Get the 9S12 908 711 705 4 in 1 Motorola Programador:
1.Language :English
2.Opreation System : Easy to use Windows 98/NT/2000/XP software
Notice :
On the D53J mask set (MC68HC05X32), DIV10 is forced in bootstrap mode.
So 20 MHz Crystal must be used with this device
1.Motorola 9S12 Programmer Features
In circuit / on board EEPROM/FLASH programming
Communication with PC via a serial port
Win 32 control software including editor
High Speed Programming
80QFP, 112QFP and 144QFP programming adapters
Motorola 9S12 Programmer Supported Devices
68HC912DC128A (3K91D)
MC68HC912DC128 (0K50E)
MC68HC912DG128 (5H55W)
MC68HC912DG128A (3K91D)
MC68HC912DG128A (0K50E)
MC68HC912D60A(2K38K)
MC68HC912B32 (4J54E)
MC68HC912B32 (9H91F)
MC68HC912D60 (0K75F)
MC68HC912D60 (0K13J)
MC68HC912D60 (4F73K)
MC9S12D64 (2L86D)
MC9S12DG128B (OL85D)
MC9S12DT128B (OL85D)
MC9S12A128B (OL85D)
MC9S12DB128B (OL85D)
MC9S12DT128B (1L85D)
MC9S12H128 (1K78X)
MC9S12 DT128B (3L40K)
MC9S12DG256C (2K79X)
MC9S12DT256C (2K79X)
MC9S12DP256C (2K79X)
MC9S12H256 (1K78X)
MC9S12DP512 (1L00M)

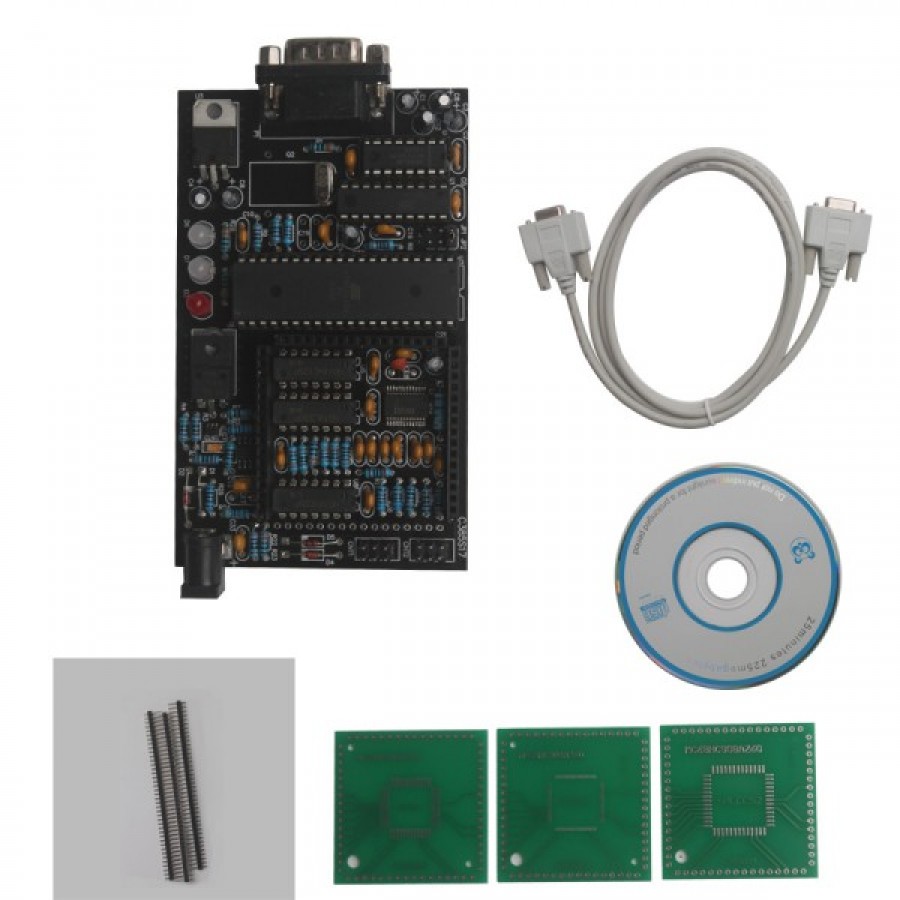

For Motorola 9S12 Programmer Package Included
one 9S12 programmer
one HC912 QFP80 adapter
one MC9S12 112QFP adapter
one MC9S12 80QFP adaper
one HC912 QFP112 adapter
one MC9S12H256 144QFP adapter
Additional items youll need to use this Motorola 9S12 Programmer
Host: A 32 Bit x86 based or Pentium PC with a free LPT communication port.
Power supply: An 12 Volt / 500 mA power adapter.

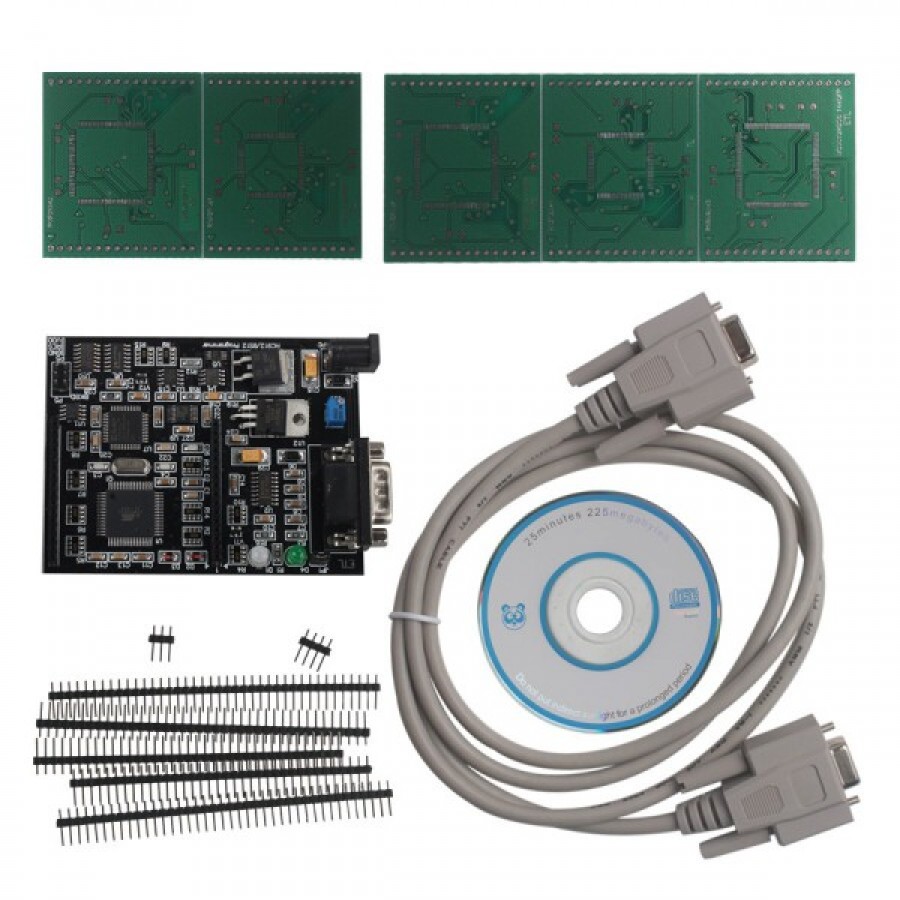

2.Motorola 908 Programmer/ETL
1)In-Circuit EEPROM programming (MON08 Rev1 adaptor must be used).
2)Ultra high-speed On-Board FLASH/EEPROM programming.
302x2 color LEDs indicates mode of operation, power supply status

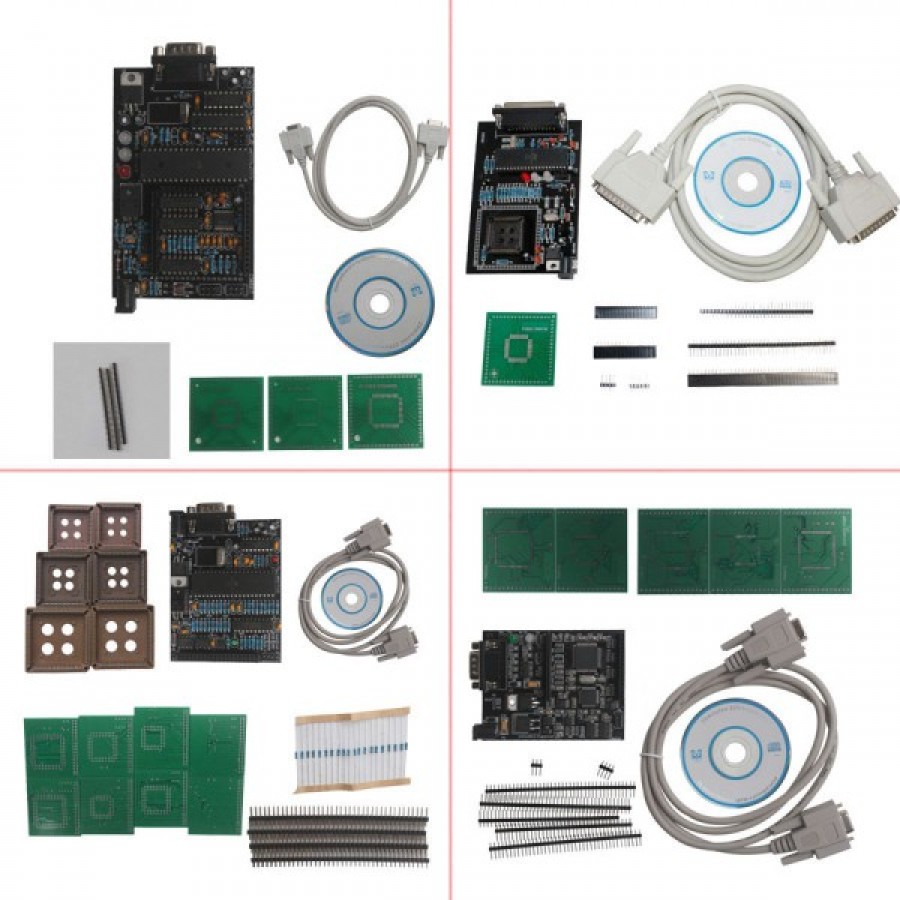

package Including:
For Mortorola 9s12 programmer + adapters + software x 1
For Mortorola 908 programmer + adapters + software x 1
For Mortorola 711 programmer + adapters + software x 1
For Mortorola 705 programmer + adapters + software x 1
