Product Description
Cost-effective, the price of product is only one-third of similar foreign products.
Optional Bluetooth version - for wireless PC connectivity
The only Toyota approved low cost device on the market for Toyota diagnostics.
Optional Bluetooth version - for wireless PC connectivity
The only Toyota approved low cost device on the market for Toyota diagnostics.
Mangoose VCI For Toyota V13.00.022 Single Cable Support DLC3 Diagnostic Trouble Codes
Top 4 Reason To Get Mangoose VCI
1. Support for DLC3 (OBD II) from 1996-presentTop 4 Reason To Get Mangoose VCI
2. Support for diagnostics and flash reprogramming software
3. USB Diagnostics tool for CAN, J1850VPW, and ISO9141/KWP2000 vehicles 4. Supports Windows 2000, XP, Vista (32/64-bit), and Windows 7 (32/64-bit)
Notice:
1. Windows XP or Windows 7 32-bit are recommended for compatibility with OEM applications.
2. Currently, we recomend avoiding Windows 8.
3. Firmware Version: V1.4.1
Mangoose VCI for Toyota Features and Functions:
1. Customize (C-Best)
2. Diagnostic Trouble Codes
3. Data List
4. Active Test
5. Monitor
6. Utility
7. Reprogramming
8. Health Check
Technical Specifications:
1. Key Features
Simple packaging with electronics contained inside the cable.
2. Bus Protocols
1). CAN Bus (capable of ISO 15765, GMLAN, and ISO14229)
2). J1850VPW
3). ISO9141 / KWP2000
3. Other
1). J2534 and J2534-1 compliant device driver
2). Commercial Range (0 to +70 C)
3). Dimensions: 3" x 1.75"
4). Operating Voltage: Bus-powered by USB
5). Host Interface: Full-speed 12 mbps USB 2.0 with J2534 device driver
Package Including:

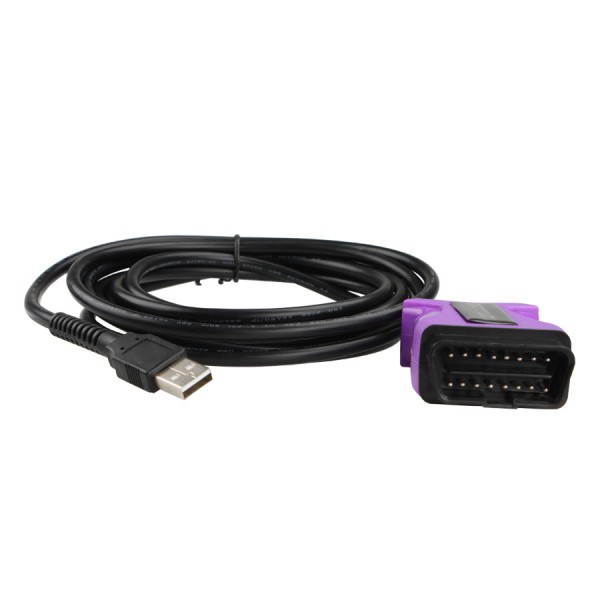

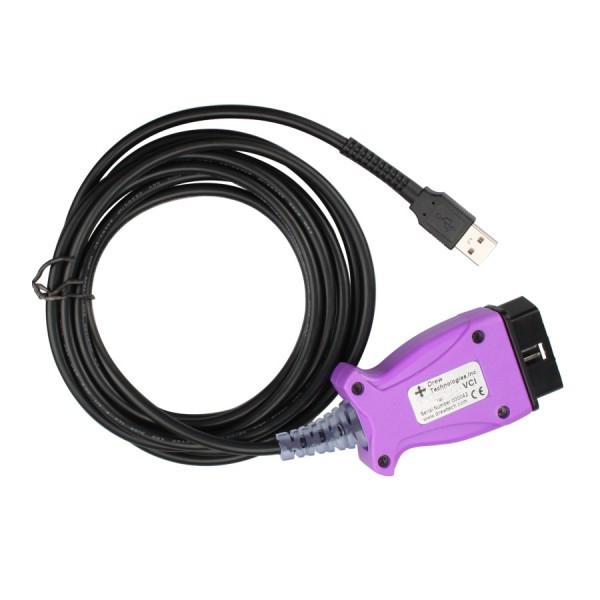

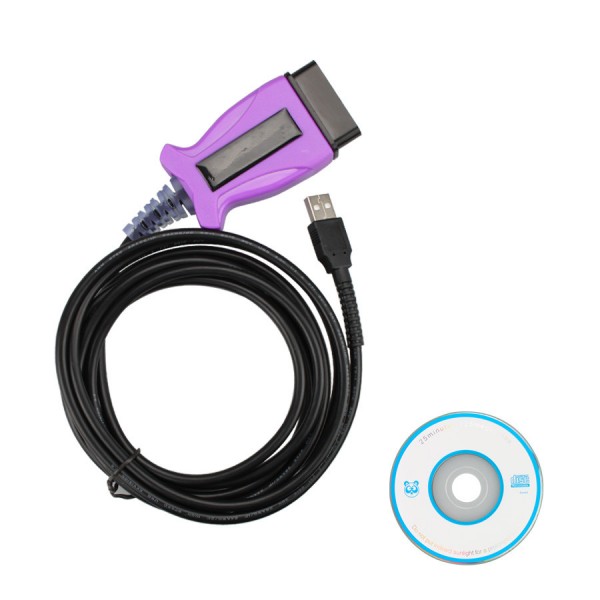

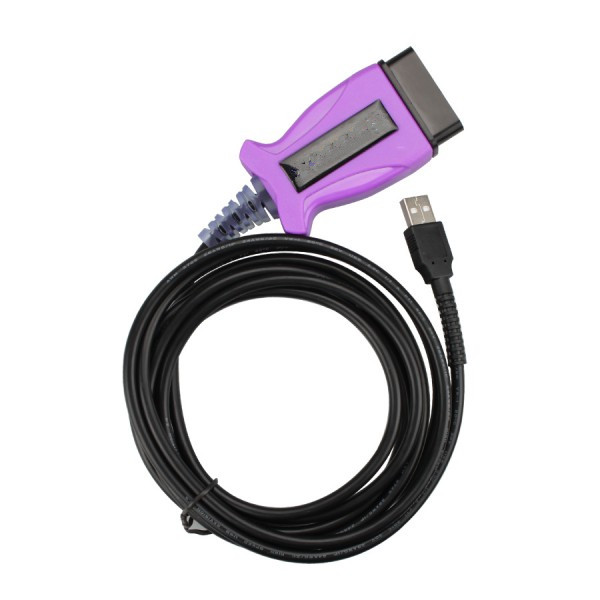

1pc x Mangoose VCI for Toyota Single Cable
1pc x CD Driver
