Product Description
VGATE WIFI OBD Multiscan ELM327 For Android PC iPhone iPad
Top 11 Reasons to Get VGATE Wifi ELM327:
1. Software Version: V2.1
Hardware version: V1.5
2. Support Both Android PC iPhone and iPad
3. Fully compatible with ELM327 V1.4b.
4. All ELM327 supported software are available to use.
5. Faster than ELM327 four times or higher. (ELM327 is RISC 8bit 44MHz MCU, iCar is ARM 16bit MCU)
6. Built in power switch.
7. Low standby power consumption sleep mode.
8. Lower power consumption than ELM327

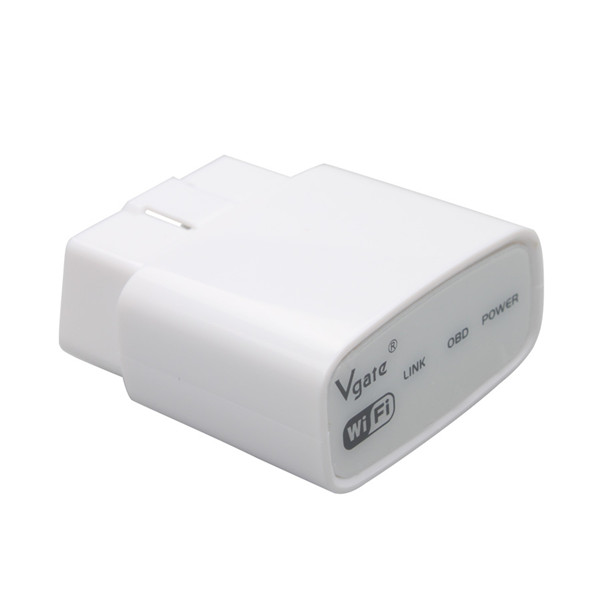

9. LED indicator is in the front side toward user for easier check of linking status.
10. Support J1939 protocol more than ELM327.
11. WiFi 802.11 b/g and encrypted for better security.
Notice:
Due to the android diagnostic software becomes heavier to run, suggest to use on smart phone with CPU 800Mhz or higher, 1GHz recommended.
Product Specifications:
OBDII decode chip: ARM 16bit MCU
Firmware: ELM327 Version 1.4b compatible
Transfer baud rate: 4800 / 9600 / 10400 / 38400 / 500K
Input interface: OBDII male 16pin
Output interface: Wifi 802.11 b/g
LED Indicator: Power(red) / OBD(green) / Link(blue) (PC or smart phone)
Operating Voltage: 12V, including over voltage /shortage protection
Nominal Idle current: 45mA
Net Weight: 31g
Gross Weight: 60g
Wire Length: 0 cm
SSID: BUYOBD
Password: See item label
IP: 192.168.0.10
HTTP local port: 35000
Encryption: WEP128
Power: supplied by car OBD socket
Usage:
1. Plug the scantool into Car OBDII female socket which is usually below the driving wheel.
2. Insert car key and switch to Accessory ON position for static data reading,
3. Scan the iCar from your Desktop/Notebook PC/PDA wifi device.
4. Find "BUYOBD" to link. Enter password which is on the item label.
5. You may switch car key to Start position to read more dynamic data readings.
